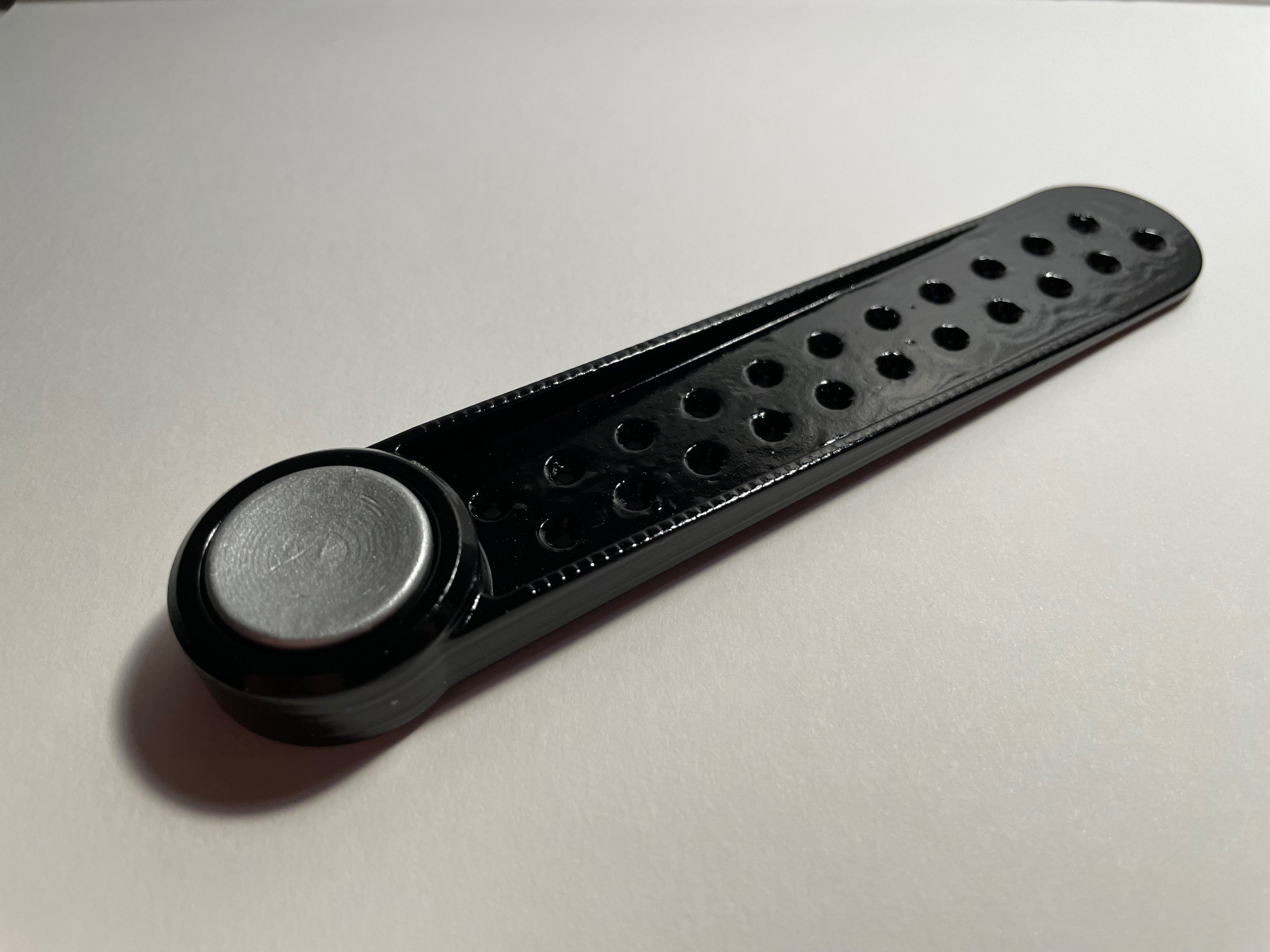

bespoke drawing compass
When doing precise drawing work, I’d always get frustrated with the holes that get pierced in the paper when drawing circles with a typical compass. I’d also be disappointed I couldn’t draw accurate circles with a pen without a large circle stencil.

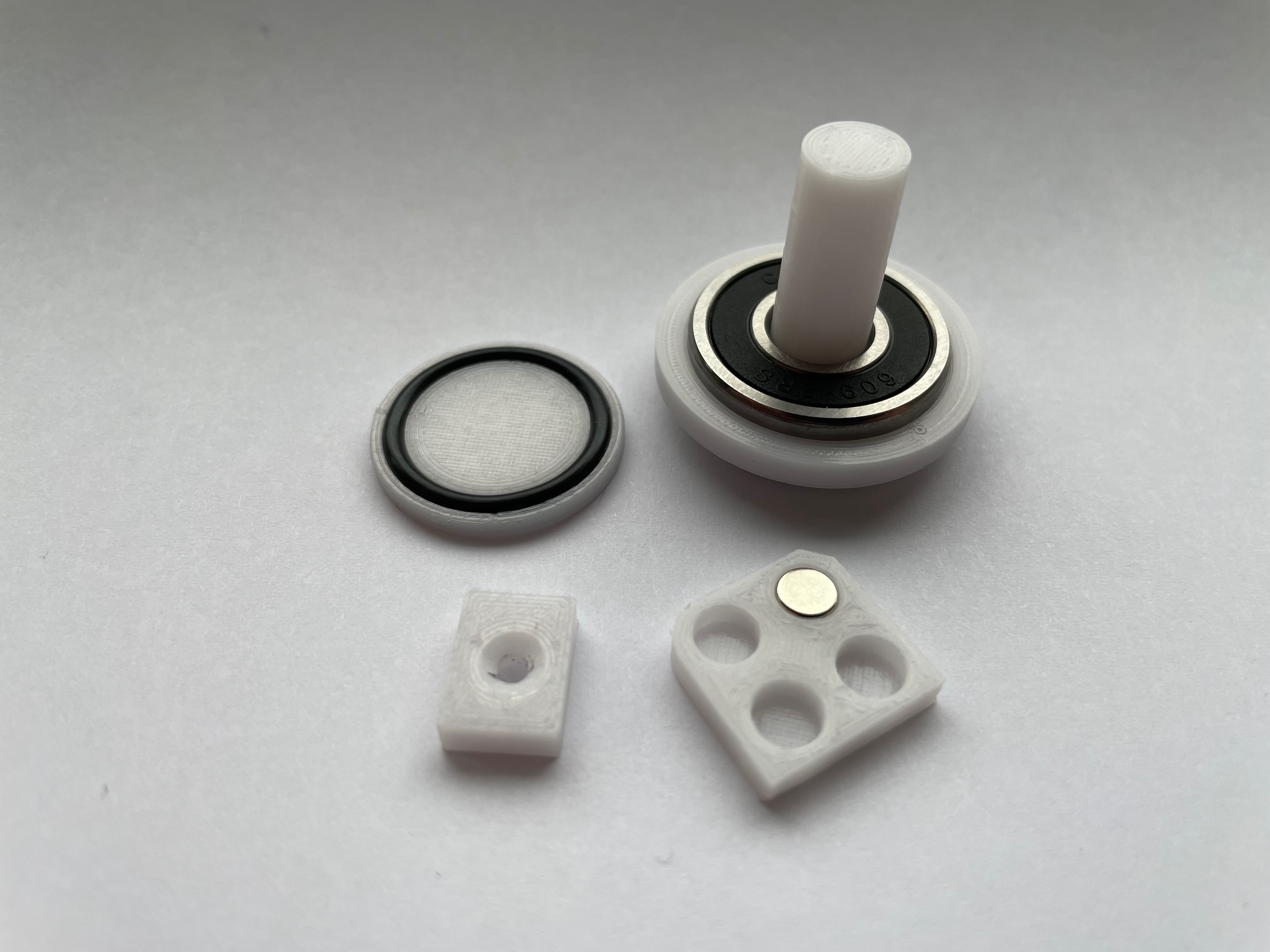

Instead of giving in and shelling out for the Rotio that I had always dreamed of, I decided to create my own pierce-less compass, optimised for 3D printing. My aim was to make it easy to disassemble to replace or clean the parts easily, while also wanting a seamless, zero fixing appearance.
![](https://freight.cargo.site/t/original/i/ab966b84e77916f62d1cbef3a3b4c41e893b729c997b81ecdef2a11e2de02ec2/IMG_5385.jpeg)
![](https://freight.cargo.site/t/original/i/880359ad4a094bf1a81366e5eb21ac6242b1ae2c84fe70b7a351f1e22f99d98a/IMG_5503.jpeg)
The main features of the compass include:
- Offers 22 different diameters of circle
- Prevents pierced holes appearing in engineering drawings, as required

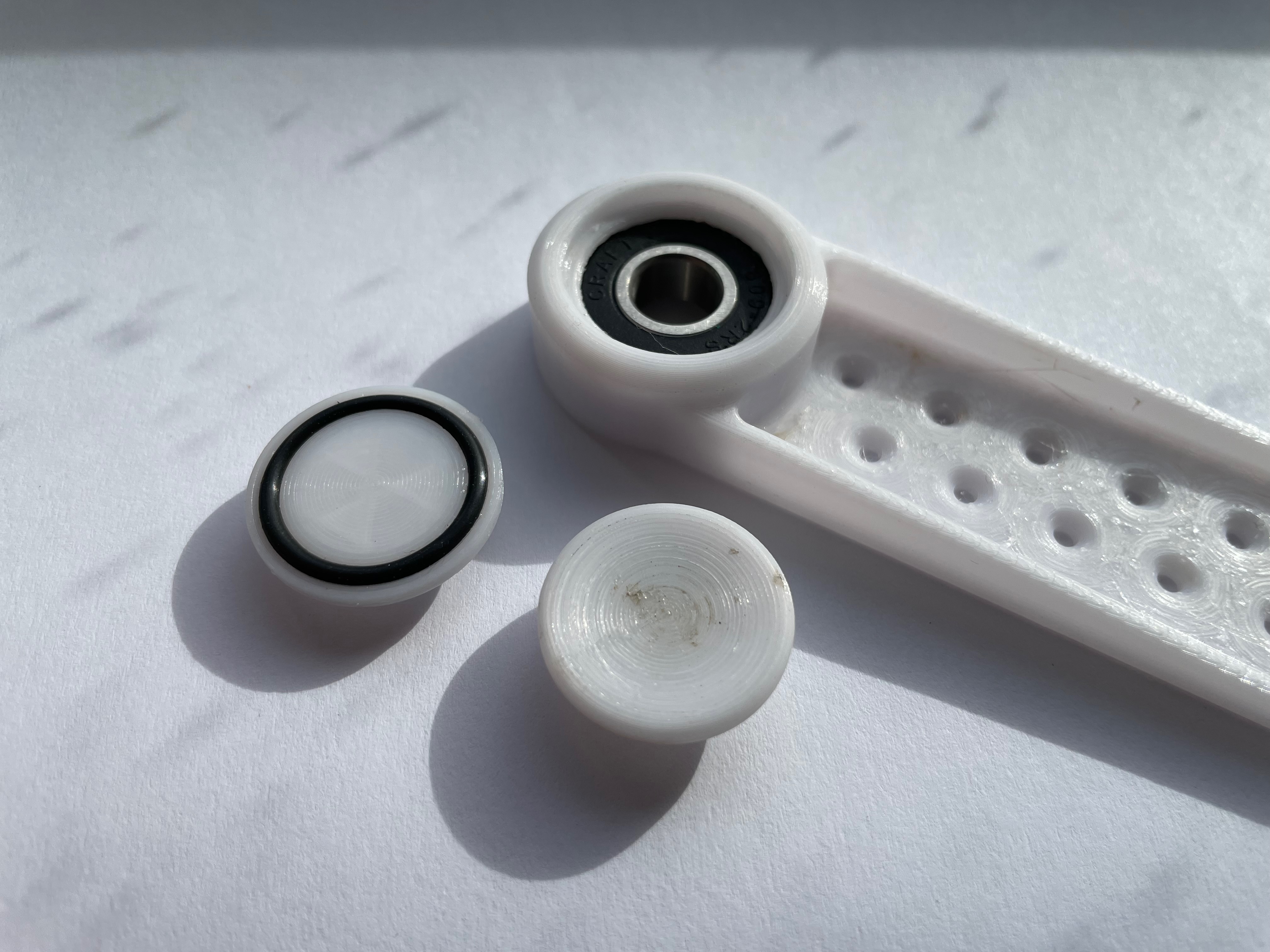

- Smooth operation with use of sealed bearing
- Pencil holes large enough for thick ballpoint pens, up to around 1mm line thickness
- Great stability and grip from the O-ring on the foot

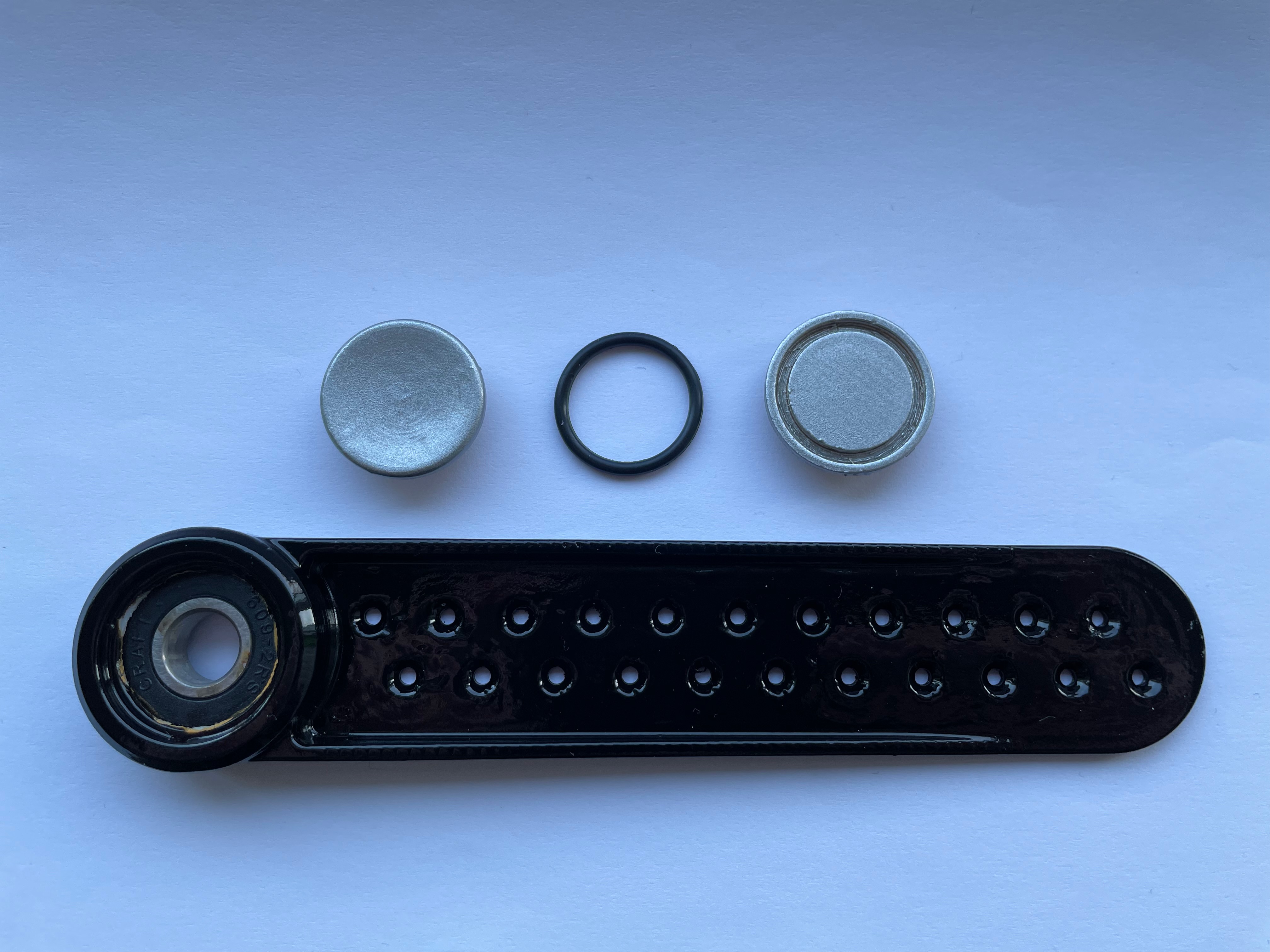

- Easy to disassemble with a small screwdriver for repair and cleaning
- Offers 22 different diameters of circle
- Prevents pierced holes appearing in engineering drawings, as required
- Smooth operation with use of sealed bearing
- Pencil holes large enough for thick ballpoint pens, up to around 1mm line thickness
- Great stability and grip from the O-ring on the foot
- Easy to disassemble with a small screwdriver for repair and cleaning
![](https://freight.cargo.site/t/original/i/992fbffd5e615f75ae01087f722e080d941d2a889df3d1e0bf36866cf48b3aaa/IMG_5566.jpeg)
![](https://freight.cargo.site/t/original/i/5c3963710ff234c53f4fe064476f8b36f87c920f48b769cd714310e60bd53703/IMG_5567.jpeg)
![](https://freight.cargo.site/t/original/i/7d7f203523dd4e2a4b808f46b4f131d35a740c6844687fd105dda6d5309560ac/IMG_5522.jpeg)
