hidden reversing camera
Anyone that has owned or driven a van has likely realised how difficult it is to reverse into parking spaces without hitting the rear bumper. I’m not going to call myself a parking professional, but I had certainly never had any issues until owning my van.
I didn’t want anything like parking sensors ruining the smooth look of the rear, so a hidden reversing camera was the way forward.
I didn’t want anything like parking sensors ruining the smooth look of the rear, so a hidden reversing camera was the way forward.
![](https://freight.cargo.site/t/original/i/f63539728beca8ffe49a74259c1c92165980f42eea3429bb0d438030391f5a21/Reverse-Camera-Mount-v133.png)
![](https://freight.cargo.site/t/original/i/3f6b870d33efa6c2b995d12c1b28ddbd5c97a5b851c33f304dc1d01d25c82ae1/Reverse-Camera-Mount-v132.png)

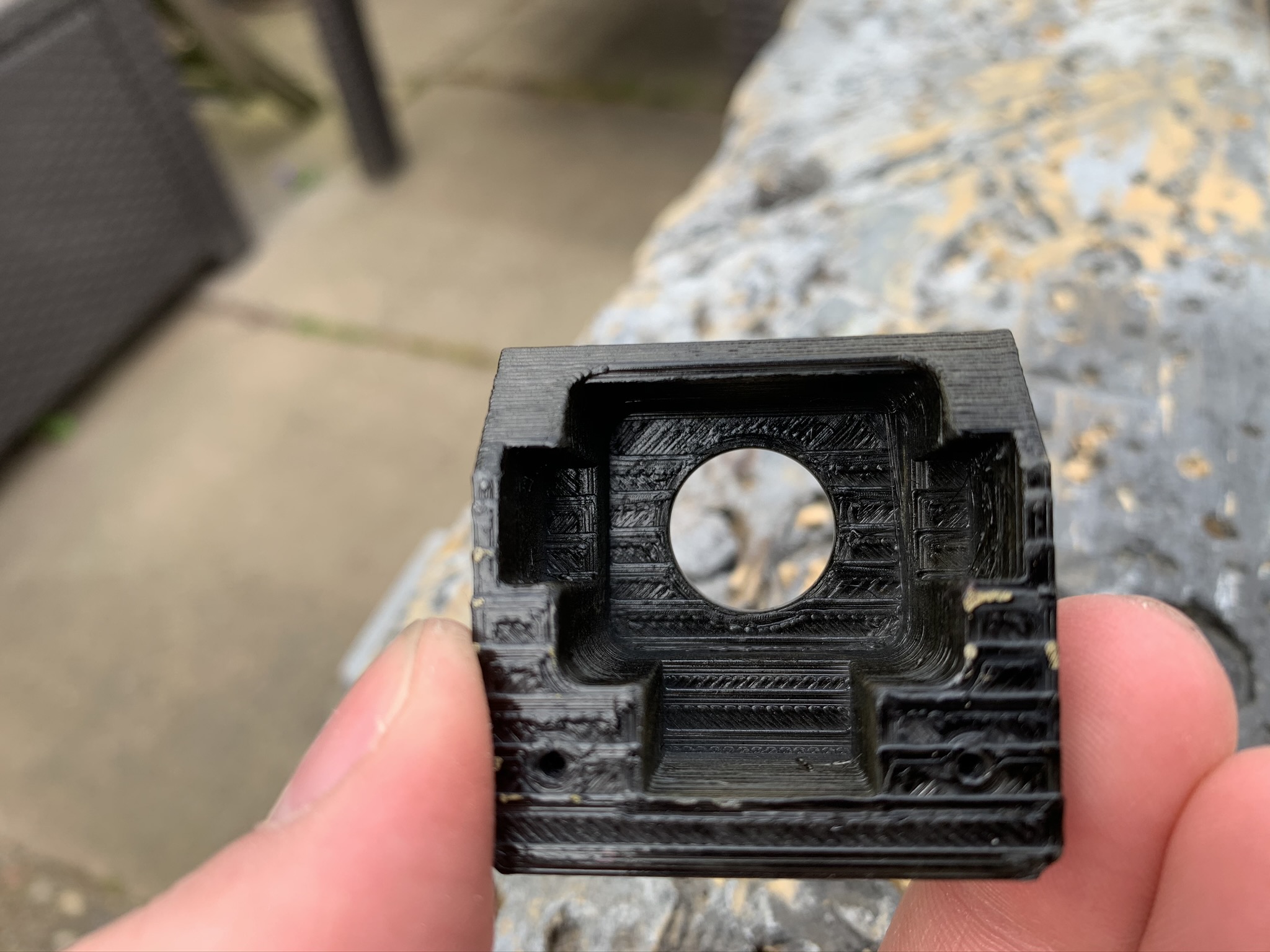

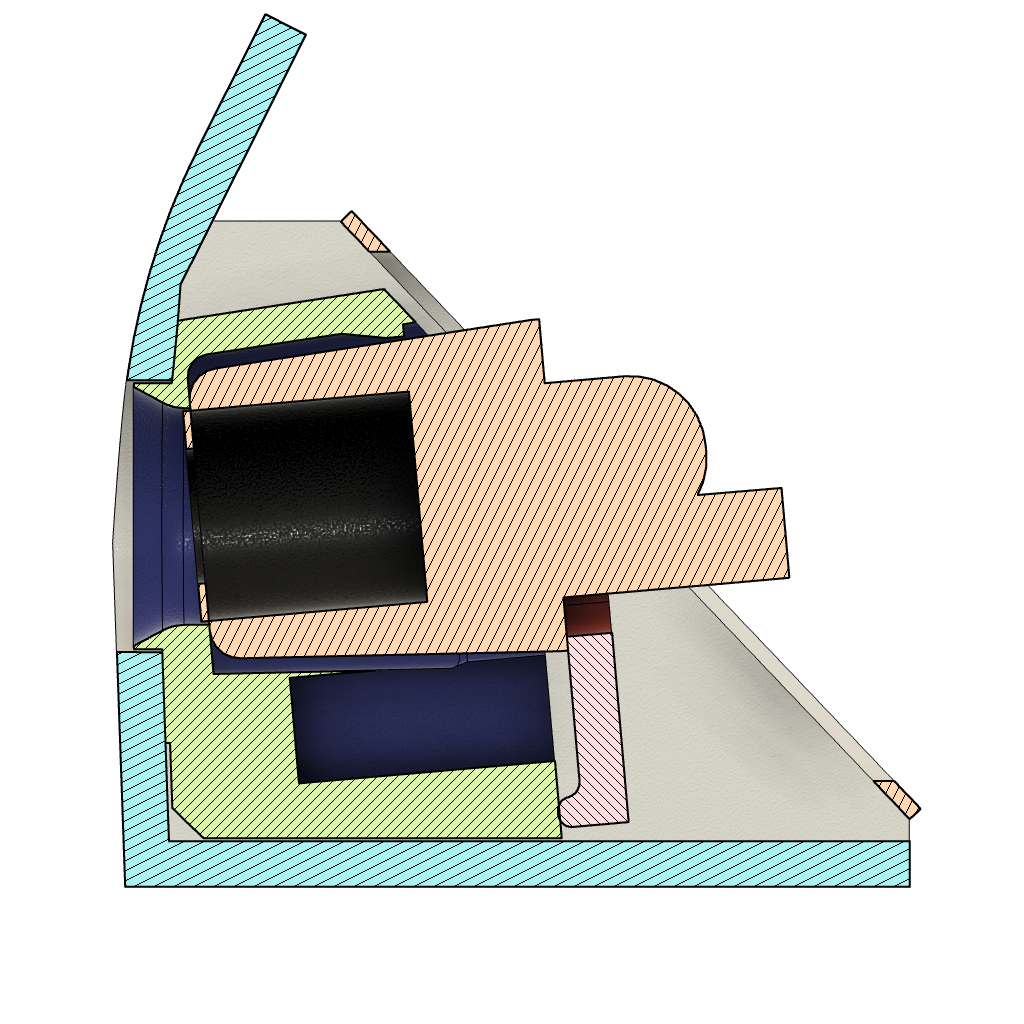

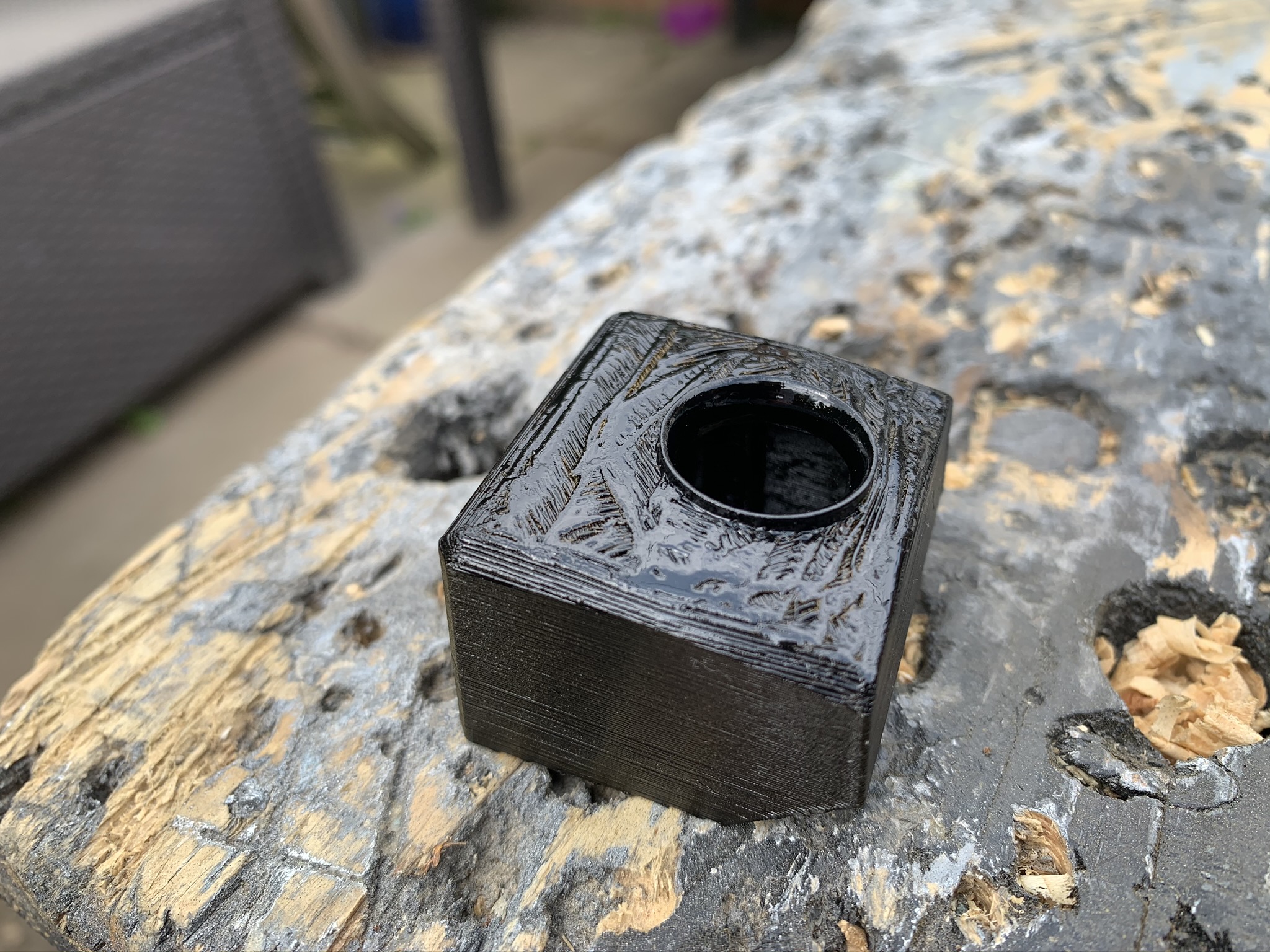

With a 3D printed PETG mount that was modelled in Fusion360, printed, prepped and painted for a smooth finish, I could easily hide the camera module in the key barrel hole, blending in nicely with the gloss black trim around it.
The reversing camera allowed me to see a a very wide view of everything behind the van.
The reversing camera allowed me to see a a very wide view of everything behind the van.

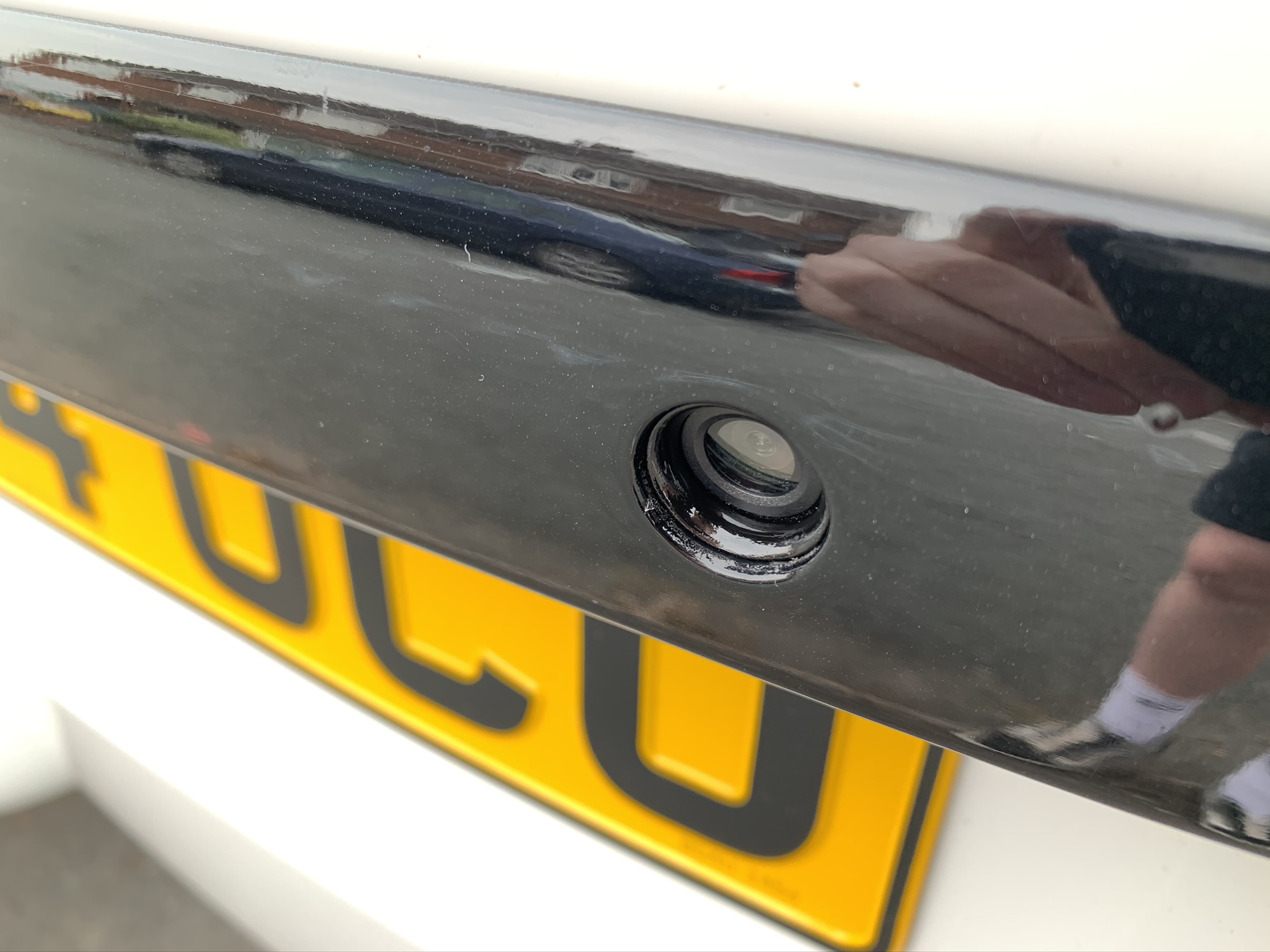

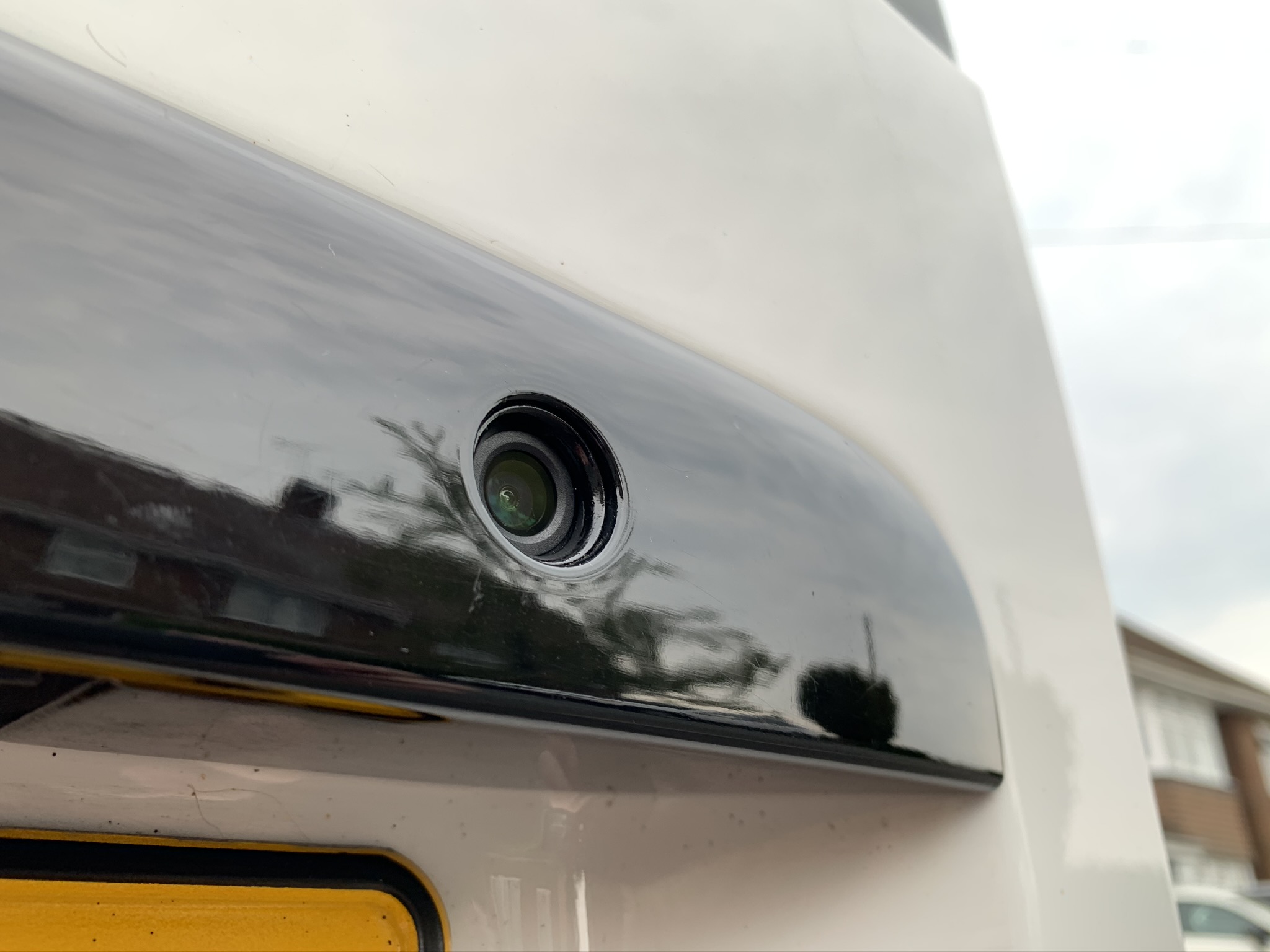

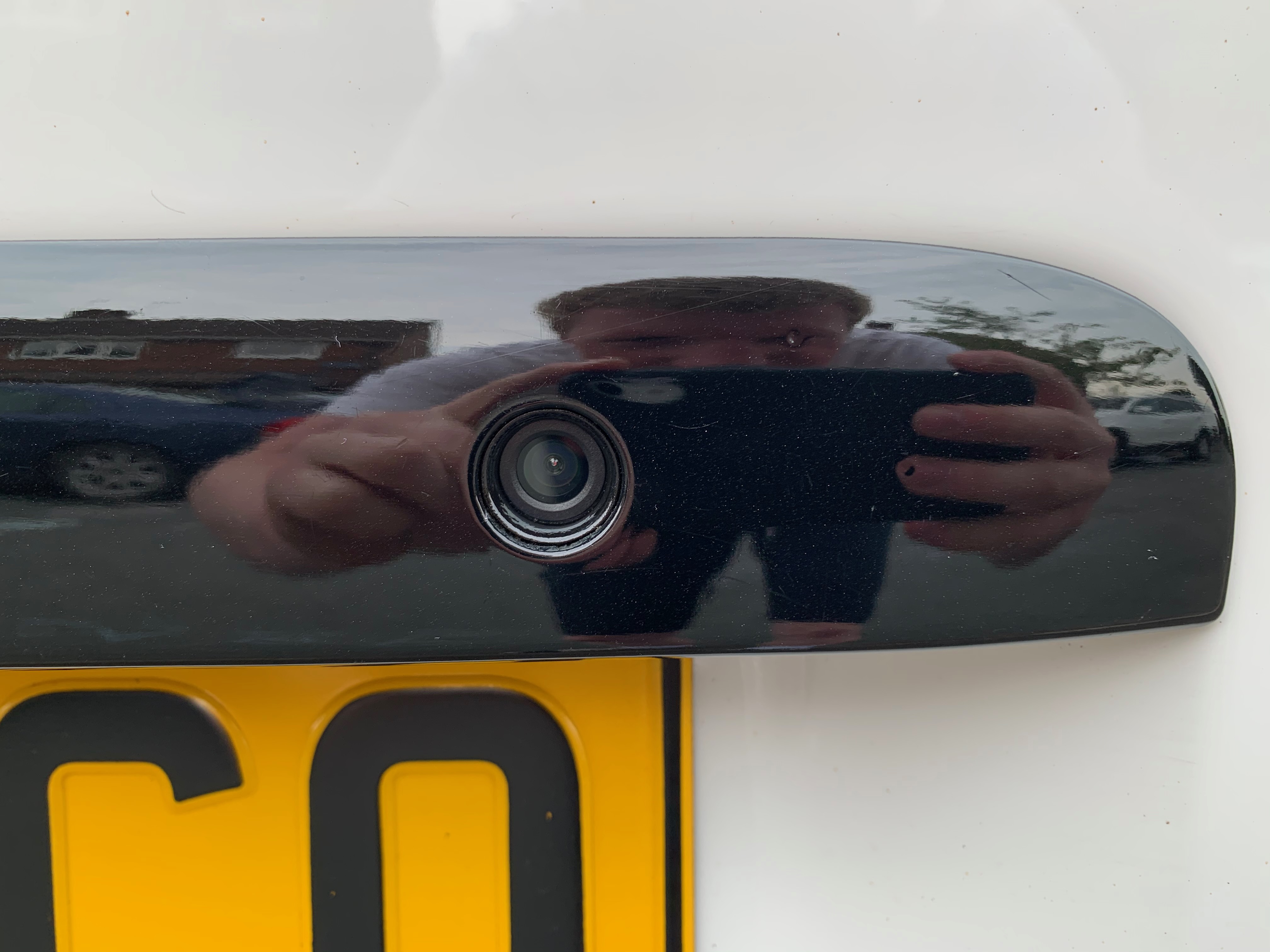

in my opinion, it even looks better than the boring silver key barrel.
![](https://freight.cargo.site/t/original/i/04cbf4be714d59243a9e7bcb694d333a7749f8d1e2c797455f481ca88672d613/IMG_1819.jpeg)
